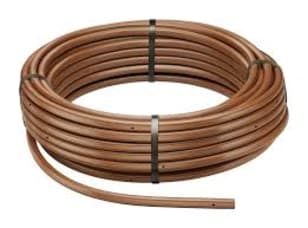

Rain Bird XFD0612100 Dripline, 1/2 in Nominal, 100 ft L, 8.5 to 60 psi Working, Polyethylene
Part #141507
MFG #XFD0612100
Rain Bird XFD0612100 Dripline, 1/2 in Nominal, 100 ft L, 8.5 to 60 psi Working, Polyethylene
Part #141507
MFG #XFD0612100
Sign In to See Your Price
Rain Bird XFD0612100 Dripline, 1/2 in Nominal, 100 ft L, 8.5 to 60 psi Working, Polyethylene
Part #141507
MFG #XFD0612100
- Attributes
- Item Features
Attributes
Inside Diameter0.53600000000000003 in
Length1 ft
MaterialPolyethylene 0
Nominal Size1/2 in
Outside Diameter0.63400000000000001 in
Temperature RatingUp to 1 Water/Up to 125 Ambient deg F
Wall Thickness0.49 in
Working Pressure8.5 to 6 psi
Item Features
- XF Dripline - 0.6 GPH, 12 in. Spacing, 100 ft. Coil.
- Unique material offers significantly greater flexibility, allowing tighter turns with fewer elbows for easier installation.
- Choice of flow rates, spacing and coil lengths provides design flexibility for a variety of non-turfgrass applications.
- Accepts Rain Bird Easy Fit Compression Fittings, XF Dripline Insert Fittings and 17mm insert fittings.
- Use an Air/Vacuum Relief Valve Kit when installation is below soil.
- The pressure-compensating emitter design provides a consistent flow over the entire lateral length ensuring higher uniformity for increased reliability in the pressure range of 8.5 to 60 psi.
- Dual-layered tubing (brown over black) provides unmatched resistance to chemicals, algae growth and UV damage.
- The most flexible, pressure-compensating inline emitter tubing available to irrigate ground cover, dense plantings, hedge rows and more. Extra flexible tubing for fast, easy installation..
