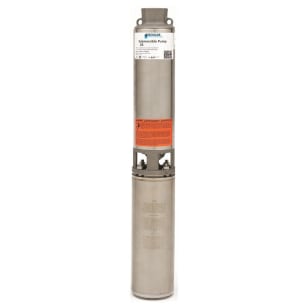

Goulds 25GS15412CL 25GS Submersible Well Pump, 3 Wires, 9 Stages, 230 V, 1 Phase, 1-1/2 hp
Part #728
MFG #25GS15412CL
Goulds 25GS15412CL 25GS Submersible Well Pump, 3 Wires, 9 Stages, 230 V, 1 Phase, 1-1/2 hp
Part #728
MFG #25GS15412CL
Sign In to See Your Price
Goulds 25GS15412CL 25GS Submersible Well Pump, 3 Wires, 9 Stages, 230 V, 1 Phase, 1-1/2 hp
Part #728
MFG #25GS15412CL
- Item Features
- Attributes
- Documents
Item Features
- Field serviceable.
- Sand resistant construction.
- 4 in motor.
- 3.9 in effective diameter with cable guard.
- Rotation is counterclockwise when observed from pump discharge end.
- 1-1/4 in NPT discharge.
- 15.3 in water end L.
- 8 to 33 gpm flow range.
Attributes
Series25GS
Flow Rate25 GPM
Number of Wires3
Number of Stages9
Maximum Head170 ft
Power Rating1-1/2 hp
Voltage Rating230 V
Frequency Rating60 Hz
Phase1
Maximum Pressure0 to 60 psi
Motor Speed3450 rpm
Impeller TypeNoryl
Bearing TypeProprietary Engineered Polymer
Material304 Stainless Steel
Dimensions3.75 in Dia x 15.3 in L
