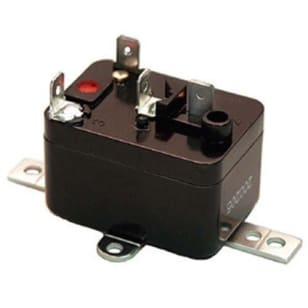

Alltemp 25-90293 Standard Duty Relay, Open Contact, 24 V V Coil

Part #40231

MFG #25-90293


Alltemp 25-90293 Standard Duty Relay, Open Contact, 24 V V Coil

Part #40231

MFG #25-90293

Sign In to See Your Price

Alltemp 25-90293 Standard Duty Relay, Open Contact, 24 V V Coil

Part #40231

MFG #25-90293

Item Features
  • -20 deg C (-4 deg F) to 40 deg C (104 deg F) Temperature Range.
  • 1,000,000 operations Mechanical Life.
  • 100,000 operations (@ 16amp 240VAC Res.) Electrical Life.
  • 25 ms at nominal coil voltage Operate Time (typical).
  • 25 ms at nominal coil voltage Release Time (typical).
  • Dielectric Strength (at sea level for 1 min.): - 2500 Vrms coil to contact. - 1000 Vrms between open contacts.
  • Class A (105 deg C / 221 deg F) Coil Insulation.
  • Continuous Coil Duty Cycle.
  • Silver cerium Contact Material.
  • Phenolic Enclosure.
  • 90 Coil Resistance DC OHMS ±10%.
  • 146 Nominal Current MA.
  • 3.5 Nominal VA Sealed.
  • 4 Inrush VA.
