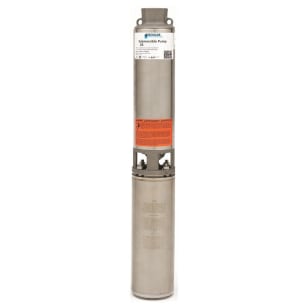

Goulds 18GS10412CL 18GS Submersible Well Pump, 3 Wires, 8 Stages, 230 V, 1 Phase, 1 hp
Part #725
MFG #18GS10412CL
Goulds 18GS10412CL 18GS Submersible Well Pump, 3 Wires, 8 Stages, 230 V, 1 Phase, 1 hp
Part #725
MFG #18GS10412CL
Sign In to See Your Price
Goulds 18GS10412CL 18GS Submersible Well Pump, 3 Wires, 8 Stages, 230 V, 1 Phase, 1 hp
Part #725
MFG #18GS10412CL
- Item Features
- Attributes
- Documents
Item Features
- Field serviceable.
- Sand resistant construction.
- 4 in motor.
- 3.9 in effective diameter with cable guard.
- Rotation is counterclockwise when observed from pump discharge end.
- 1-1/4 in NPT discharge.
- 13-1/2 in water end.
- 6 to 28 gpm flow range.
- Model 18GS10.
- Without control box.
Attributes
Series18GS
Flow Rate18 gpm
Number of Wires3
Number of Stages8
Maximum Head180 ft
Power Rating1 hp
Voltage Rating230 V
Frequency Rating60 Hz
Phase1
Maximum Pressure0 to 60 psi
Motor Speed3450 rpm
Impeller TypeNoryl
Bearing TypeProprietary Engineered Polymer
Material304 Stainless Steel
Dimensions13-1/2 in L
